Aluminium Shell LiFePO4 Package

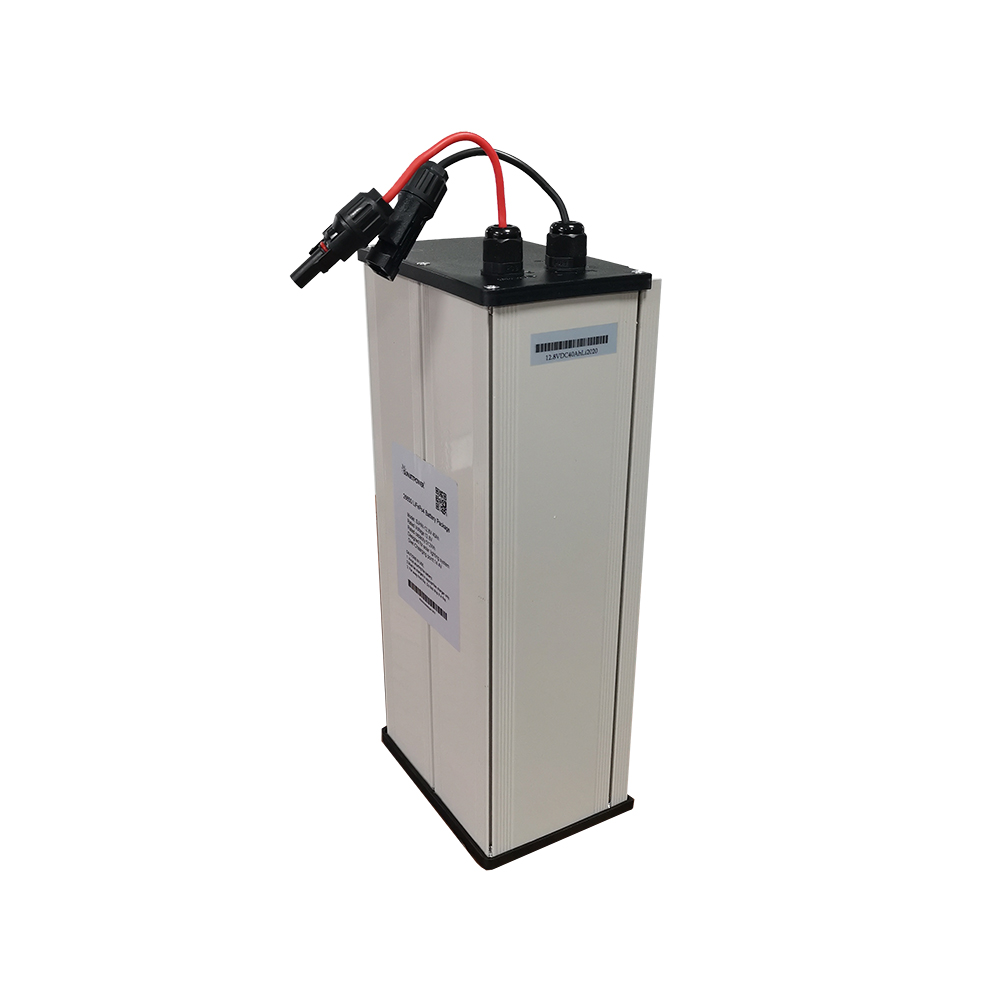

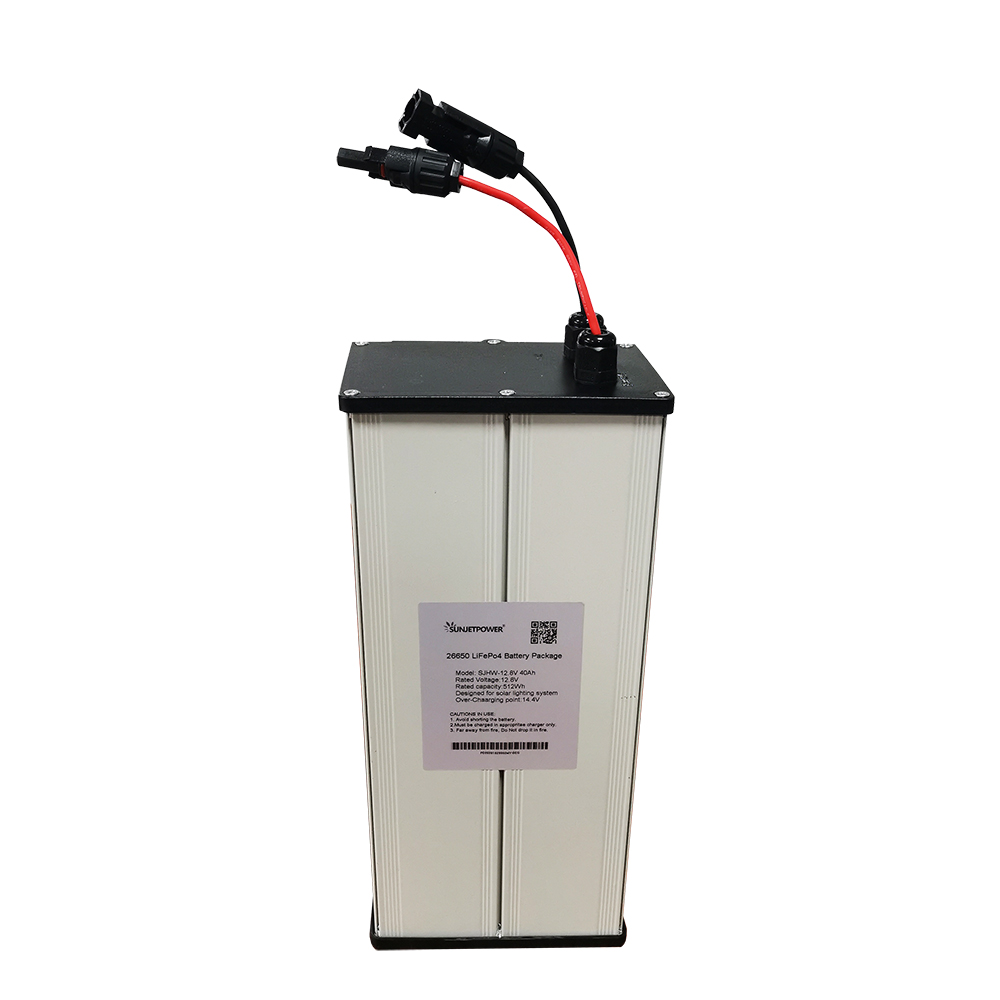

The Aluminium Shell LiFePO4 battery is designed for solar lighting or mini solar power system, packed by 26650 or 32650 battery cells, with protective PCB inside and protected by Aluminium Shell.
Share our products/stories to your friends!
Specification
NameDescription
Rated Voltage12.8VDC
Voltage after shipping12.8-16.5VDC
Internal ImpedanceCell≤25mΩ, Pack≤100mΩ

Charging Method

CC&CV
Overcharge Detection Voltage3.75Vdc(Single cell Voltage)
Over discharge protection voltage2.1Vdc(Single cell Voltage)

Standard charge/discharge current

0.2C

Operating Temperature0ºC ± 45ºC
