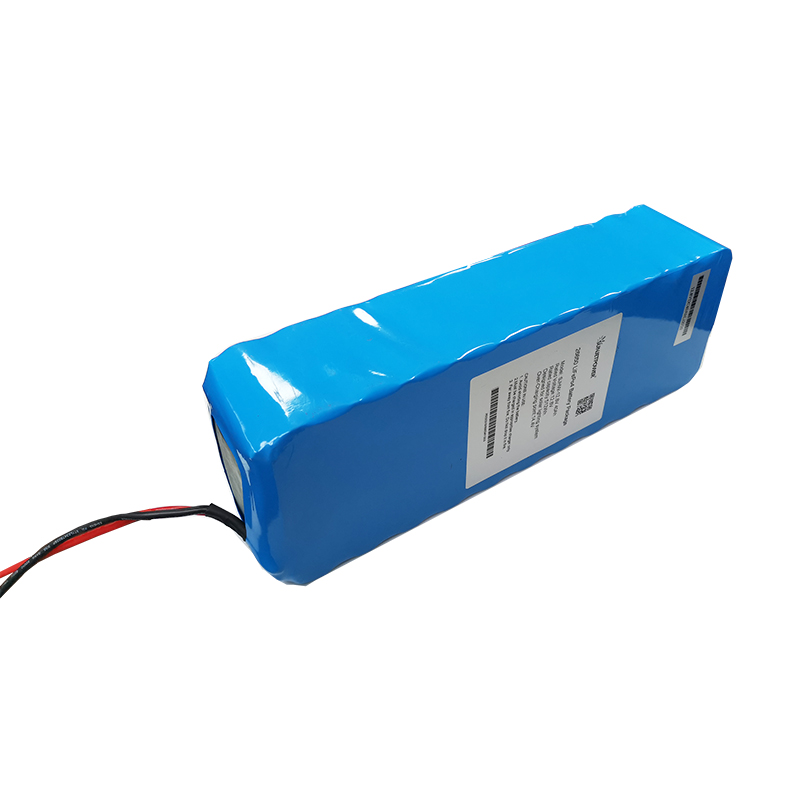

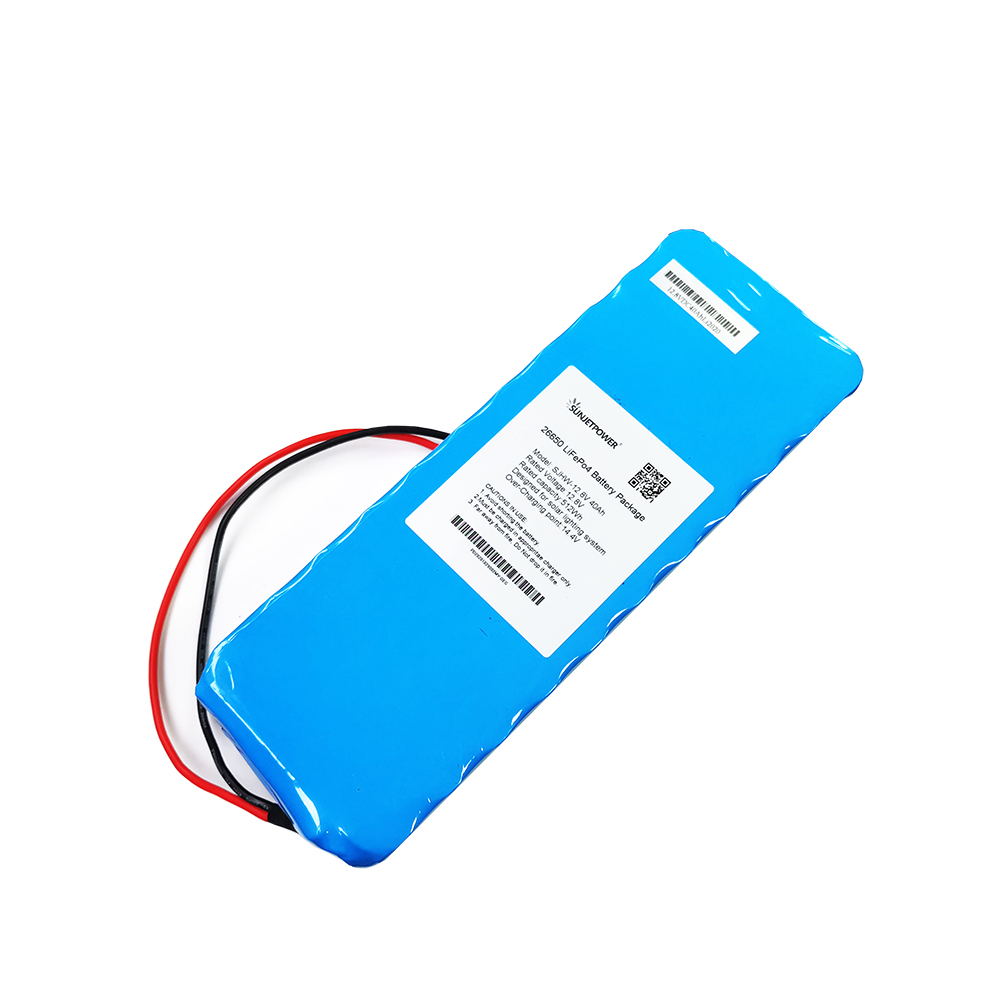

The Soft package of LiFePO4 battery is designed for solar lighting or mini solar power system, packed by 26650 or 32650 battery cells, with protective PCB inside.
Share our products/stories to your friends!
Specification
NameDescription
Rated Voltage12.8VDC
Voltage after shipping12.8-16.5VDC
Internal ImpedanceCell≤25mΩ, Pack≤100mΩ

Charging Method

CC&CV
Overcharge Detection Voltage3.75Vdc(Single cell Voltage)
Over discharge protection voltage2.1Vdc(Single cell Voltage)

Standard charge/discharge current

0.2C

Operating Temperature0ºC ± 45ºC
