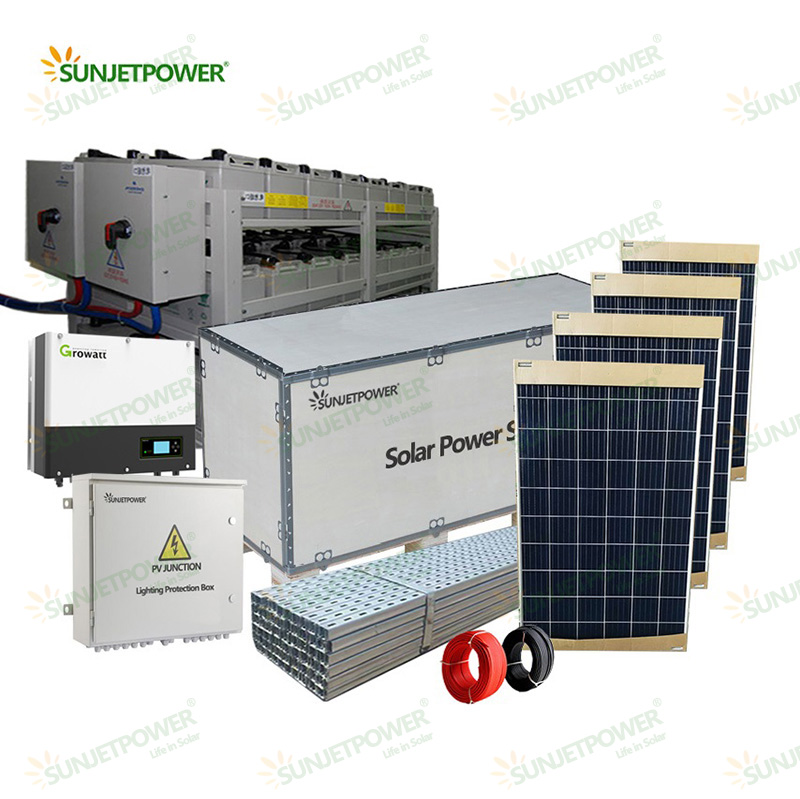

SJ-SPB-8000(6KVA Hybrid)
SJ-SPB-8K(6KVA Hybrid System)
This system is design for Hybrid.
At daytime, the iverter will power the load directly, then charge the battery if have the balance it will sold the electricity to the Grid.
When the Grid is off, the system will work as a stand-alone power system.
When the raining day, if the battery lack of power, the inverter will take the power from Grid automatically.
Guarantee:
PV-Module 20 years performance/Inverter 5 years
Note: the whole system can be customized based on your specific requirements.
Share our products/stories to your friends!
Specification
NameDescription
Rated Voltage48V DC / 230V AC 50Hz
Max. Power Outputs6000VA
Max. PV Input8000 Wp
Max. PV Voltage550V
BatteryMaintenance free, deep cycle solar batteries
Battery Capacity>12000 Wh
Sine Wate Inverter(Pure battery backup state)Continuous power @25ºC 2800W, power 30 min. @25ºC 3000W
Charge Controller66A
Low Voltage Protection45.6V
High Voltage Protectionyes
Low Voltage Reconnect50.0V

Typical Usage

Electrical AppliancePower (W)QuantityWorking Hours / Day
Fluorescent lamp9 W86
Computer100 W610
LCD TV (32”)120 W210
Satellite Receiver25 W110
Fan50 W1010
Freezer 180L180W124

Max Power Consumption / Day: 40 KWh/Day
